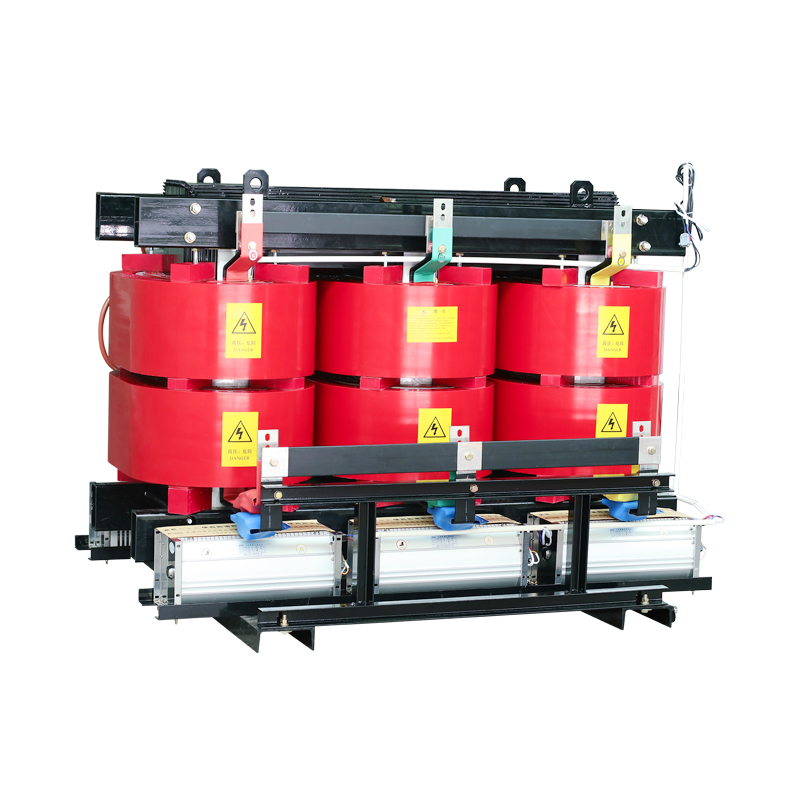

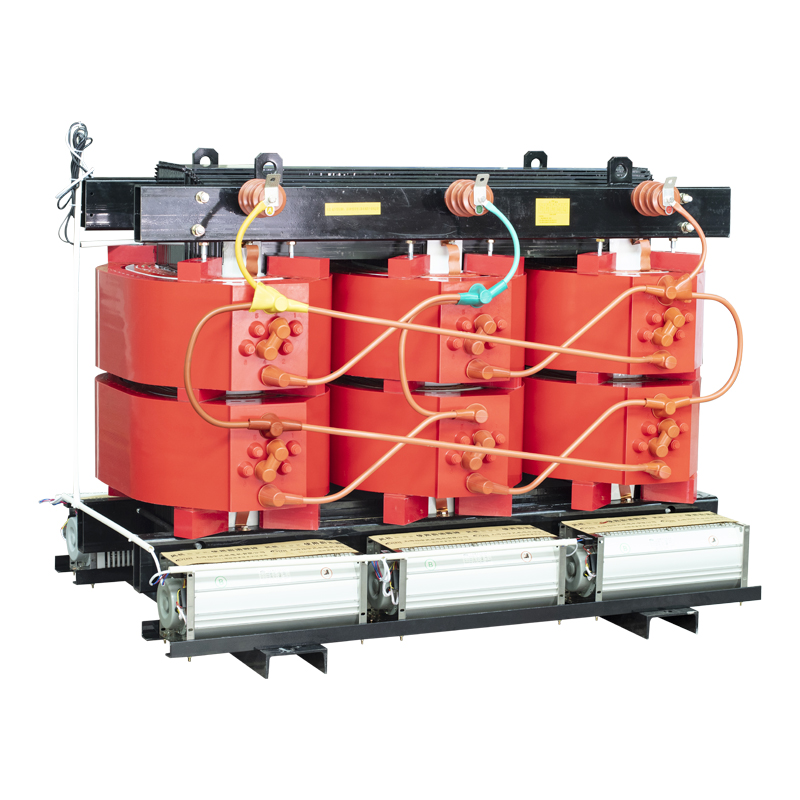

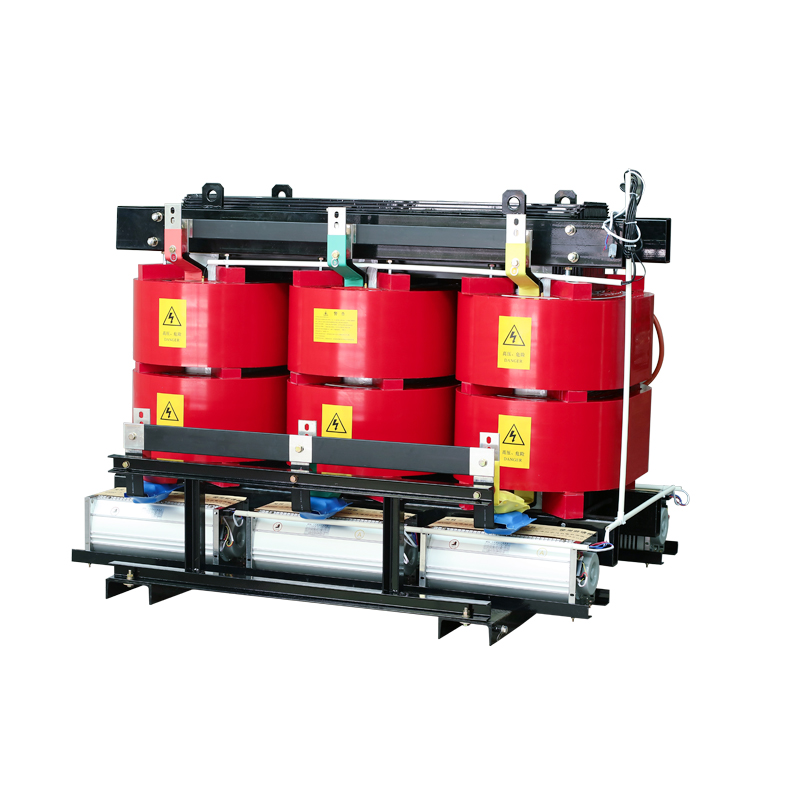

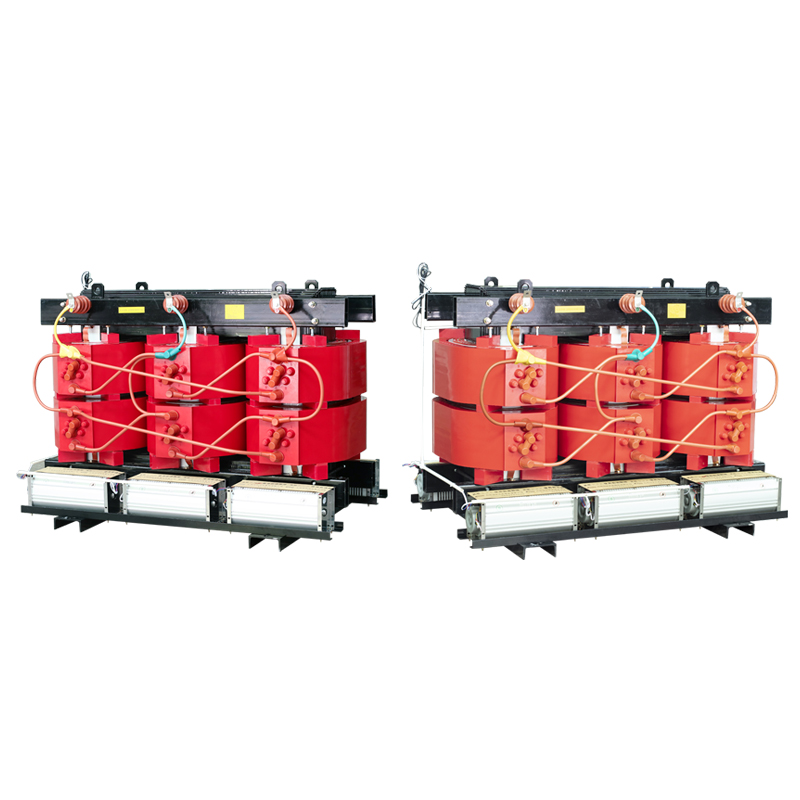

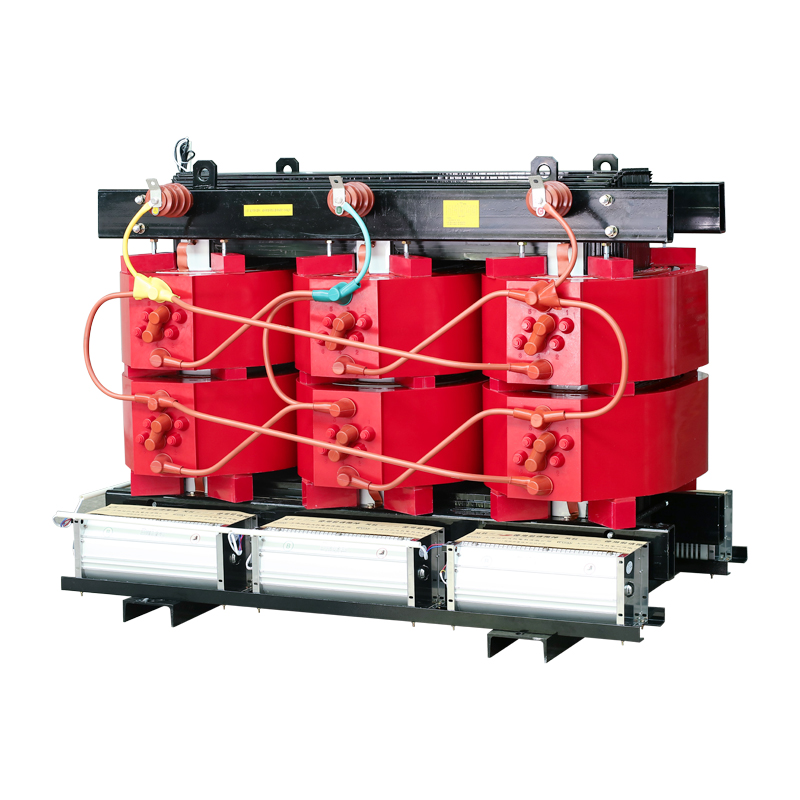

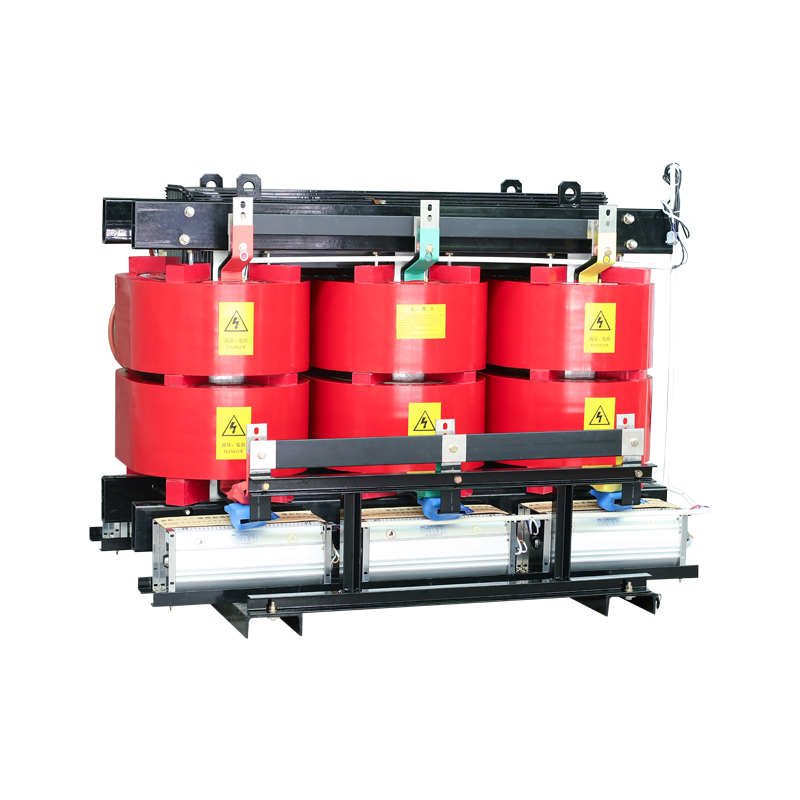

Cast Resin 500kVA Dry-type Transformer 6.6kv-10kv

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;......Keywords:Cast Resin 500kva Dry-type Transformer 6.6kv-10kv - Buy Step Down Transformer factory Direct Selling Price High Voltage Transformer dry Type Transformer cast Resin 500kva Transformer factory Direct Selling Price 6.6kv-10kv Voltage Conversion toroidal Coil Structure three Phase Rated Frequency Product on Shanghai Zikai Electric Co., Ltd.

Product Description

country of origin	china	Rated frequency	50HZ/60HZ
brand	Zikai	input voltage	10kv
Product Name	Dry type transformer	output voltage	220V、380V、440V、480V
Number of coils	two	Application Market	global market

Model	No-load loss	The load loss (120°C) (W)	Short circuit imped ance %	No-load current %	Sound level (LPA) dB	weight (kg)	Size(mm)
Model	No-load loss	The load loss (120°C) (W)	Short circuit imped ance %	No-load current %	Sound level (LPA) dB	weight (kg)			a
SC(B)10-30/10	190	705	4 6	1.7	46	330	1100
SC(B)10-50/10	270	995			1.4	46	450	1200
SC(B)10-20/10	370	1380			1.2	48	600	1200
SC(B)10-100/10	400	1570			1.1	48	680	1200
SC(B)10-125/10	472	1845			1	48	780	1300
SC(B)10-160/10	545	2125			0.9	50	960	1400
SC(B)10-200/10	625	2525			0,8	50	1170	1400
SC(B)10-250/10	720	2755			0.7	50	1370	1500
SC(B)10-315/10	880	3470			0.6	51	1490	1600
SC(B)10-400/10	980	3990			0.6	51	1670	1600
SC(B)10-500/10	1160	4880			0.5	51	1855	1600
SC(B)10-630/10	1300	5960			0.5	51	2110	1900
SC(B)10-800/10	1520	6950			0.5	51	2540	1950
SC(B)10-1000/10	1770	8130			0.5	51	3050	2050
SC(B)10-1250/10	2090	9690			0.4	52	3450	2100
SC(B)10-1600/10	2450	11730			0.4	52	4040	2200
SC(B)10-2000/10	3320	14450			0.4	53	4655	2200
SC(B)10-2500/10	4000	17170			0.4	53	5535	2400

Size(mm)
b	c	d	e	f	g	h	i	k1	k2
1000	1100	550	960	840	230	300	250	300	150
1000	1200	550	970	850	215.5	290	250	320	160
1000	1300	550	1040	875	226.5	300	250	340	170
1000	1200	550	180	895	227.5	305	250	350	180
1000	1300	550	1100	955	235	310	250	360	180
1100	1300	660	1155	1017	239.9	354.5	250	380	190
1100	1400	660	1230	1090	250.5	365.5	250	395	210
1100	1500	660	1265	1116	257	372	250	410	210
1100	1600	660	1415	1175	262	377	280	410	210
1100	1650	660	1460	1260	276.5	395	280	440	200
1100	1650	660	1460	1290	280.5	400		450	220
1350	1500	940	1320	1100	310	395	350	530	230
1400	1600	940	1390	1165	310	400	350	540	250
1400	1700	940	1440	1215	315	415	400	590	270
1450	1800	940	1580	1310	330	430	400	600	290
1450	1900	940	1700	1420	355	125	400	610	300
1450	2000	940	1840	1510	345	425	400	625	320
1500	2000	940	1900	1610	360	430	420	630	340

Shanghai Zikai Electric Co., Ltd. is a production and sales-oriented enterprise specializing in the manufacturing of power equipment. We integrate design, research and development, manufacturing, and technical services. Our main products include gas-insulated switchgear , ring main units , prefabricated substations , high-voltage switchgear, low-voltage switchgear, cable branch boxes, outdoor switching stations, primary and secondary fusion pole-mounted circuit breaker, and indoor and outdoor high-voltage vacuum circuit breakers. The products are widely used in various distribution networks, including industrial and mining sectors, transportation, petrochemical and metallurgical industries, residential communities, and ports. Over the years, our products have been sold worldwide, reaching markets in the Americas, Europe, Africa ,the Middle East, and Southeast Asia. We have garnered unanimous praise from clients across thousands of projects. We adhere to the service philosophy: "What our peers can do is a duty, what our peers cannot do is our service!" and provide comprehensive consulting services to our customers.

1.Are you a trade company or a manufacturer? Shanghai Zikai Electric Co., Ltd. is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services. 2.What are the main products of your company? Our company specializes in producing and selling high-quality electrical equipment, including vacuum circuit breakers, isolating switches, grounding switches, and various power accessories. Our flagship product is the ZW32-12 outdoor high-voltage vacuum circuit breaker, widely used for protection and control in power distribution systems. 3.How can I purchase your products? You can place an order online through our website or contact our sales team for more product information and quotations. We support multiple payment methods and provide worldwide shipping services. 4.How do you ensure the quality of your products? We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance. 5.Do you offer customization services? Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements. 6.Can we visit your factory? Absolutely! We welcome customers to visit our production facilities and learn about our manufacturing processes and quality control measures. Please schedule an appointment in advance, and we will arrange for a professional team to host and accompany you during the visit. If you have any other questions or need further information, please feel free to contact us. We are dedicated to providing you with the best service.
