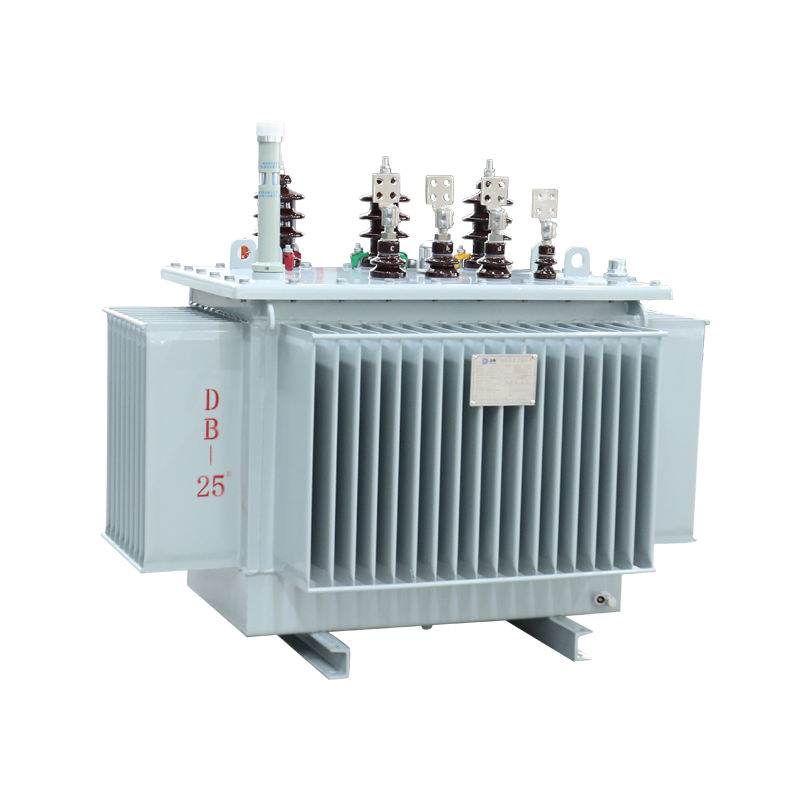

Hot-selling High-quality Oil-immersed transformers Are Cheap and of Good Quality

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;......Keywords:Hot-selling High-quality Oil-immersed Transformers Are Cheap And Of Good Quality - Buy Oil-immersed Transformer oil Immersed Substation Transformer 1000kva oil Immersion Transformers high Cost-effective hot Sale transformer Product on Shanghai Zikai Electric Co., Ltd.

Product Description

country of origin	china	Coil structure	TOROIDAL
brand	Zikai	Number of coils	AUTOTRANSFORMER
Product Name	Oil immersed transformer	defects liability period	Two years
Number of phases	Three	customized	yes

Nominal capacity (kVA)	Voltage combination					Join groups	loss(W)		No- load current (％)	Shortcircuitimped-ance (％)
Nominal capacity (kVA)		High pressure (kv)	Tappingrange	The low pressure (kv)		Join groups	n0-load	(75°C)load	No- load current (％)	Shortcircuitimped-ance (％)
30	6 6.3 10 10.5 11	±5% ±2 *2.5%	_0.4	Yyn0 Dyn11	80	600	0.8	4 4.5
50									100	870	0.75
63									110	1040	0.7
80									130	1250	0.7
100									150	1500	0.65
125									170	1800	0.65
160									200	2200	0.6
200									240	2600	0.6
250									290	3050	0.5
315									340	3650	0.45
400									410	4300	0.4
500									480	5100	0.4
630									570	6200	0.4
800									700	7500	0.4
1000									830	10300	0.3
1250									970	12000	0.3
1600									1170	14500	0.3
2000									1700	17500	0.5
2500									2040	21200	0.4

The weight of the kg					measure (mm)		Distance of mounting hole (mm)L1/L2
Body weight	Oil weight	total weight	length	width	height		Distance of mounting hole (mm)L1/L2
120	75	295	755	470	960	4000400
200	90	390	765	545	990	4000400
235	100	450	815	555	1035	4000400
250	105	485	830	605	1040	4500450
300	115	555	850	620	1075	4500450
370	135	660	870	635	1170	5500550
465	150	790	900	640	1280	5500550
540	190	940	960	725	1305	5500550
650	205	1095	1160	690	1345	5500550
750	250	1255	1240	760	1375	6600660
780	265	1375	1430	940	1430	6600660
850	300	1680	1435	950	1435	6600660
940	410	1850	1520	1075	1475	5500660
1175	500	2260	1535	1080	1690	8200820
1265	510	2390	1540	1080	1715	8200820
2090	570	3370	1700	1185	1740	8200820
2530	635	3950	1715	1210	1780	8200820
3095	750	4175	1745	1285	1900	82001070
3130	800	5005	1980	1525	1920	82001070

Shanghai Zikai Electric Co., Ltd. is a production and sales-oriented enterprise specializing in the manufacturing of power equipment. We integrate design, research and development, manufacturing, and technical services. Our main products include gas-insulated switchgear , ring main units , prefabricated substations , high-voltage switchgear, low-voltage switchgear, cable branch boxes, outdoor switching stations, primary and secondary fusion pole-mounted circuit breaker, and indoor and outdoor high-voltage vacuum circuit breakers. The products are widely used in various distribution networks, including industrial and mining sectors, transportation, petrochemical and metallurgical industries, residential communities, and ports. Over the years, our products have been sold worldwide, reaching markets in the Americas, Europe, Africa ,the Middle East, and Southeast Asia. We have garnered unanimous praise from clients across thousands of projects. We adhere to the service philosophy: "What our peers can do is a duty, what our peers cannot do is our service!" and provide comprehensive consulting services to our customers.

1.Are you a trade company or a manufacturer? Shanghai Zikai Electric Co., Ltd. is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services. 2.What are the main products of your company? Our company specializes in producing and selling high-quality electrical equipment, including vacuum circuit breakers, isolating switches, grounding switches, and various power accessories. Our flagship product is the ZW32-12 outdoor high-voltage vacuum circuit breaker, widely used for protection and control in power distribution systems. 3.How can I purchase your products? You can place an order online through our website or contact our sales team for more product information and quotations. We support multiple payment methods and provide worldwide shipping services. 4.How do you ensure the quality of your products? We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance. 5.Do you offer customization services? Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements. 6.Can we visit your factory? Absolutely! We welcome customers to visit our production facilities and learn about our manufacturing processes and quality control measures. Please schedule an appointment in advance, and we will arrange for a professional team to host and accompany you during the visit. If you have any other questions or need further information, please feel free to contact us. We are dedicated to providing you with the best service.
